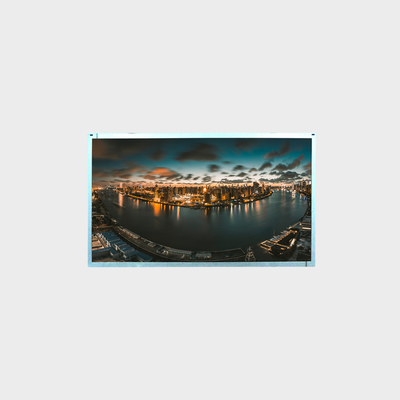

LCMA-RX0156GI01-C100 15.6 Inch LCD Outdoor Application With 1000 Nits High Brightness

  • LCMA-RX0156GI01-C100 15.6 Inch LCD Outdoor Application With 1000 Nits High Brightness
Place of Origin Shenzhen
Фирменное наименование ROGIN
Model Number LCMA-RX0156GA02-C100
Minimum Order Quantity 5
Цена Price is negotiable.
Delivery Time 6-8 weeks
Payment Terms T/T,L/C
Supply Ability Spot adequacy

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Name 15.6 Inch LCD Display Panel Size 15.6"
Resolution 1920*1080 Brightness 1000 (Typ.)
Aspect Ratio 16:9 Active Area 344.16*193.59mm
Outline Dimension 360*212.3*6.3mm
Оставьте сообщение
Характер продукции

15.6 inch High Brirghtness LCD Display 1920*1080 LVDS 1000nits

Product Advantage ►

1. Brightness customization 700-5000cd/m2.
2. Outdoor sunlight readable.
3. Low power consumption.
4. High uniformity up to 85% .
5. Long lifetime, 50K hours(Typ), up to 80K hours
6. Aluminium backlight structure with good heat dissipation.
7. Wide temperature range up to -30°C-80°C.
8. High shock resistance and high stability.

Product Application ►

1. Bus Station Signage Board.
2. Intelligent Charging Pile.
3.Outdoor Electronic News Reading Board.
4. Intelligent Express Cabinet.
5. Vending Machine.
6. Commercial Advertising Machine.
7. Attractions Information Inquiry Machine.
8. Community Information Board.
LCMA-RX0156GI01-C100 15.6 Inch LCD Outdoor Application With 1000 Nits High Brightness 0 LCMA-RX0156GI01-C100 15.6 Inch LCD Outdoor Application With 1000 Nits High Brightness 1 LCMA-RX0156GI01-C100 15.6 Inch LCD Outdoor Application With 1000 Nits High Brightness 2 LCMA-RX0156GI01-C100 15.6 Inch LCD Outdoor Application With 1000 Nits High Brightness 3

Specifications ►

LCMA-RX0156GI01-C100

  Brand   Rogin
  Series   High Brightness LCD Display
  Panel Size(inch)
   15.6
  Model
   LCMA-RX0156GI01-C100
  Brightness
   1000
  Resolution
  1920*1080
  Active Area
   344.16*193.59
  Overall Size
   360*212.3*6.3
  Viewing Angle
   89/89/89/89
  Interface Definition
   eDP (2 Lanes)
  Backlight Type   WLED
  Contrast Ratio
   1000:1
  Aspect Ratio
   16:9
  Touch Panel   Without
  Operating Temperature
   -20~70℃


► Product catalog of high brightness LCD display.pdf...
